CAST IRON

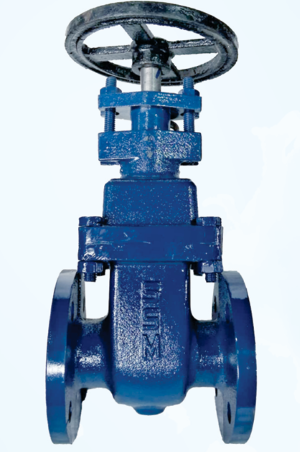

SLUICE VALVE
Flanged Type/PN1.6
Product Description
Product SSM C.I. Sluice Valve
Product Standard: IS-14846
Pressure / Class / Rating: PN 1.6
Body Material Cum Standard : IS-210 Gr. FG-200 Cast Iron
Product Description: Bolted Bonnet inside Screw
Non-Rising Stem
Type of Seat: Renewable
Type of Disc: Solid Wedge
Trim: Cu-Alloy Rings, Stem SS(12Cr.12)
Gland Packing : Jute & Hemp/Rubber
End Details: Flanges as per IS 1538 F/F Drilled
Testing and Certification
Ratings: PN 1.6
Body Test Pressure: 2.4 MPa Hyd
Seat Test Pressure: 1.6 MPa Hyd
Our Works' Test Certficates is furnished with every supply
Applications
Water

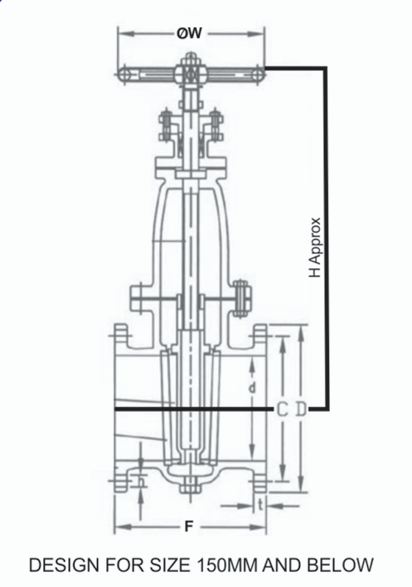

Diagram
Material of Construction
| Component | Material | Specifications |
|---|---|---|
| Cap, Gland Bonnet Thrust Plate, Body Wedge Handwheel, Stuffing Box | Cast Iron | IS:210 Gr.FG200 |
| Screw | Carbon Steel | IS:1363 |
| Stem | H.T. Brass/S.S. | IS:6912FHTB2/12cr12 |
| Gland Packing | Jute & Hemp/ Rubber | IS:5414/IS-638 |
| Bolts/Nuts | Carbon Steel | Is1363 Part 1/3 |
| Wedge Nut | Leaded Tin Br. | IS:318 Gr.LTB2 |
| Body Seat Wedge Ring | Leaded Tin Br. | IS:318 Gr.LTB2 |
| Gasket | Rubber | IS:638 Type B |
| Head bolts / Bolts & Nut for Gland | Carbon Steel | IS: 1363 Part 1/3 |
Dimensions (in mm)
| Size | F | H | ØD | T | NXØD | PN 1.6 ØW |
|---|---|---|---|---|---|---|
| 50 | 178±2 | 305 | 165 | 16 | 4x19 | 280 |
| 65 | 190±2 | 340 | 185 | 16 | 4x19 | 280 |
| 80 | 203±2 | 385 | 200 | 20 | 4x19 | 280 |
| 100 | 229±2 | 420 | 220 | 22 | 8x19 | 360 |
| 125 | 254±2 | 455 | 250 | 22 | 8x19 | 360 |
| 150 | 267±2 | 535 | 285 | 23 | 8x23 | 360 |
| 200 | 229±2 | 645 | 340 | 24 | 8x23 | 450 |
| 250 | 330±2 | 750 | 395 | 26 | 12x23 | 640 |
| 300 | 356±2 | 855 | 445 | 27 | 12x23 | 640 |
