DUAL PLATE CHECK VALVE
Product Description

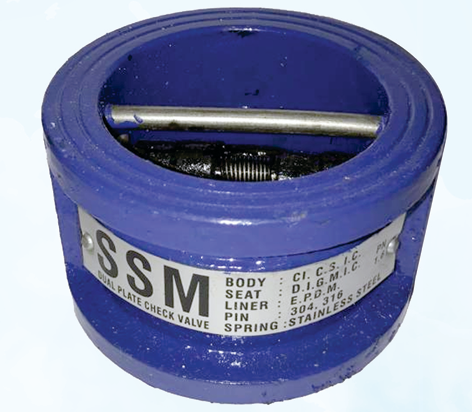

Product: SSM Dual Plate Wafer Check Valve
Pressure Rating: PN 1.6
Body Material Cum Standard : Cast Iron
Pressure Description: Wafer Type Spring Loaded
Type of Seat: EPDM Rubber Lining
Type Of Disc : Ductile Iron Disc
Trim: Spring & Pins SS 304
End Details: Wafer type suitable for clamping between flanges as per ASME B
1.6 CL-125
Testing and Certification
Body Test Pressure: 300 Psig Hyd
Working Test Pressure: 200 Psig Hyd
Our Works' Test Certficates is furnished with every supply

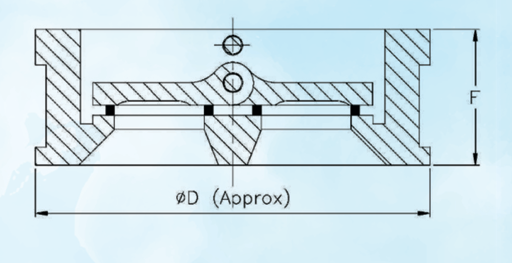

Diagram
Material of Construction
| Component | Material | Specifications |
|---|---|---|
| Body | Cast Iron | FG 200 grade |
| Body Seat | Rubber | E.P.D.M. |
| Disc | D.I(SG Iron) | ------ |
| Hinge Pin | SS | AISI-420 |
| Stop Pin | SS | AISI-420 |
| Spring | Sping Steel | AISI-304 |
| Bush/Bearing | P.T.F.E | ------ |
| Plug | SS | AISI-410 |
Dimensions (in mm)
| Size | F+2 | D |
|---|---|---|
| 50 | 55 | 93 |
| 65 | 56 | 110 |
| 80 | 58 | 130 |
| 100 | 65 | 160 |
| 125 | 70 | 185 |
| 150 | 80 | 217 |
| 200 | 98 | 270 |
| 250 | 110 | 332 |
| 300 | 116 | 375 |
